Achieve certain Reliability Evaluations

Our products provide the optimum output to various reliability test. We strongly support the improvement of your product reliability in superior performance, functionality and reliability.

CAF Tester (Erectrochemical Migration Tester)
ECM-100 Serise

This is a high efficiency tester with the superior ability by the high-speed sampling of 16 milliseconds for ECM(MIG) detection and the high work efficiency by a wide applied voltage range of 1~300V and the high side measurement. It can also be used as a multi-channel insulation resistance meter.

Figure

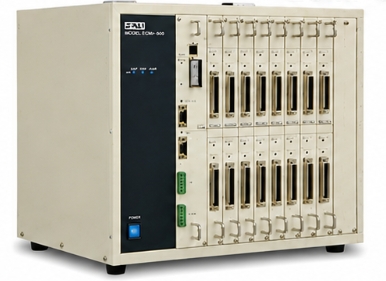

CAF Tester (Erectrochemical Migration Tester)
ECM-500 Serise

This tester can be tested at an applied voltage of up to 500V. Equipped with the instantaneous leakage current detection circuit, also captured to ensure instantaneous insulation degradation of less than 100n seconds. Resistance value measurement in normal scan will be performed in the high-speed processing of 50msec/CH.

Figure

High Voltage Insulate Reliability Tester
HVUα Serise

It is possible to detect the high voltage insulation resistance measurement and high-speed events of less than 100n seconds. Instantaneous current change due to partial discharge can also be measured. It is a high- function tester that can separate voltage settings for each channel by applying a voltage circuit of the full independent control.

Figure

Conduction Reliability Tester
RTm-100 Serise

This is a multi-channel tester to measure the micro-resistance of μΩ level. In high-speed scan processing of 50msec / CH, to measure the exact resistance value by simultaneous sampling of current and voltage. Since it is equipped with an AC/DC current source in the standard are available in a variety of sample evaluation.

Figure

Condution Reliability Tester
RTm-30DC Serise

This tester does the conduction reliability evaluation gives the electrical stress on VIA holes and through-hole in the DC current of up to 3A. It can be measured with high accuracy the changes in the micro-resistance of one of VIA by a dedicated design of the measurement circuit. It is ideal for the evaluation of car electronics-related electronic materials and printed circuit board.

Figure
